Description

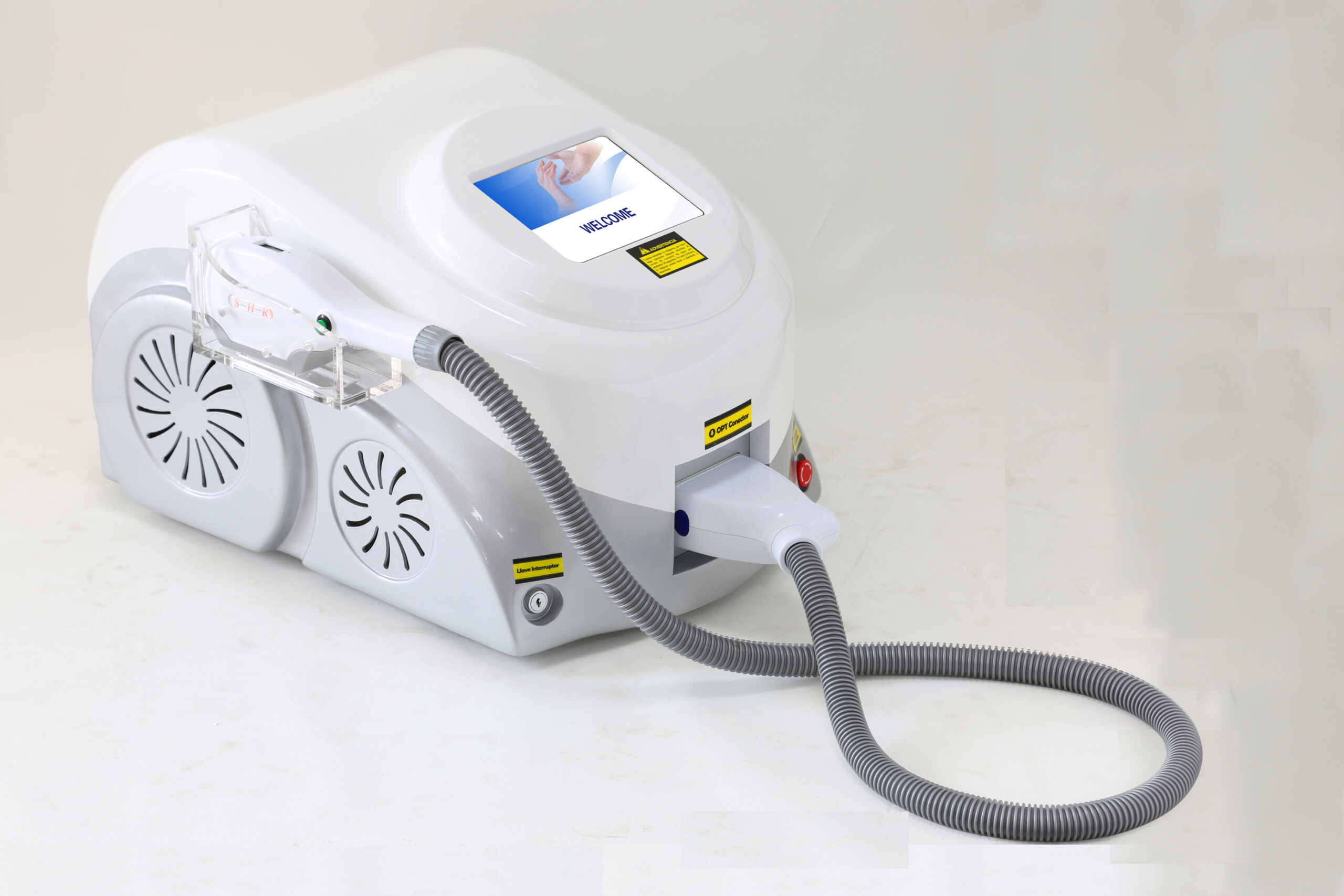

This is our hottest selling multifunctional beauty machine. It combined the function of IPL &RF, Bipolar RF, and Q Switched Nd: Yag Laser. You can get so many treatment results with only one machine. The entire cycling water cooling system makes the stable working of this machine.
A: Theory of E light ipl
The E light can penetrate to the deep skin, and selective act on the subcutaneous pigment and blood vessel to decompose melanin, close abnormal blood, resolve the various defects of skin. Simultaneously, E light can stimulate the rebirth of hypodermal collagen to make skin youth, health and smooth.
B: Theory of Bipolar RF
When RF energy get into skin, it can stimulate the water molecules of dermis to rub each other, and then, to produce large heat energy. When the temperature reach at 68-72 degrees, it will stimulate the immediately contraction of collagen fibers in dermis layer(the collagen will immediately shrink, at this time, the loose skin will lift and tighten at once. The fine wrinkles will disappear, the deep wrinkles will be lightened after one treatment.
C: Theory of Laser
The equipment uses laser to emit high energy instantaneously which smashing the pigment of pathological tissues, namely the laser leading explosive effect: High energy emits instantaneously, making particular wavelength laser penetrating epidermis and getting into pathological pigment tissues.
6 Filters of different wavelength:
| Wavelength | Treatment |
| 430nm~1200nm | anti-inflammatory, sterilization, whelk treatment |
| 480nm~1200nm | Acne treatment |
| 530nm~1200nm | Pigments removal,freckle removal |
| 560nm~1200nm | skin whitening/rejuvenation,vascular removal |
| 640nm~1200nm | SHR,fast hair removal (mainly for Asian) |
| 690nm~1200nm | SHR,fast hair removal (mainly for brown curly hair) |
Functions
1. Permanent hair removal
2. All kinds of spots removal, freckle removal
3. Acne therapy
4. Vascular therapy
5. Skin whitening, skin tightening, skin lift, skin rejuvenation, wrinkle removal.
6. Skin tightening, improving skin elasticity and glossiness
7. Shrink large pores, face lifting, body shaping
8. Removing the pigment skin pathological changes, the pigmentation caused by color pigment mixture, Pore remove,Face lift.
9. All colors tattoo removal, eyebrow line/ eye line/ lip line pigments removal.
10.Removing the corium spots, the melasma, freckle, mole, nevus of Ota, brown blue nevus, junctional nevus,etc.
Technical Parameters:
| Type | Multifunctional Beauty Machine |
| Operating Language | 6 kinds (can be customized) |
| Cooling System | Semiconductor Cooling+Air Cooling+Water Cooling |
| Output Power | 3000W |
| Input Power | AC110/220±10% 50HZ/60HZ |
| Net Weight | 60kg |
| OPT SHR (Fast Hair Removal) | |
| Filter Wavelength | 640nm/690nm |
| pulse width modulation | 1-10ms |
| Frequency | 1-10 p/s ( 1 second emits 10 flashes adjustable) |
| Energy | 1-50J/cm2 |
| Normal Elight IPL System | |
| The First Pulse Width | 1–10ms, 0.1ms for adjustable unit |
| The First Pulse Delay | 1–100ms, 1ms for adjustable unit |
| Pulse Number | 1–10 |
| Discharge Interval | 2–4s |
| Wavelength | Optional from the 480nm–640nm to 1200nm |
| Energy | IPL Energy: 1–50J/cm² |
| RF Energy: 1–50J/cm² | |
| Spot Size | 20*60mm² |
| RF System | |
| Technology | Bipolar RF |
| Treatment Heads | 20mm/ 28mm/ 35mm |
| Laser System | |
| Wavelength | Double wavelength 1064nm/532nm |
| Spot Diameter | 1–6mm continuously adjustable |
| Energy of Monopulse | ≤600mj@1064nm ≤200mj@532nm |
| The Largest Energy | 1000mj |
| Q-switching Adjusting Method | Passive adjusting method |
| Work Frequency | 1–10HZ |
